Ultra-short Inductive Proximity Sensors
Category:Proximity Sensors
●Stable detection of objects in a small space
●Shielded structure, can be embedded in objects for detection
●Shortened by 1/3 compared to similar standard products
●Shielded structure, can be embedded in objects for detection
●Shortened by 1/3 compared to similar standard products
Keywords: Photoelectric sensor, Linear speed sleeve
Product description

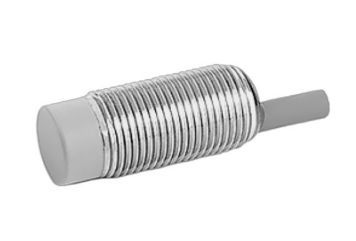

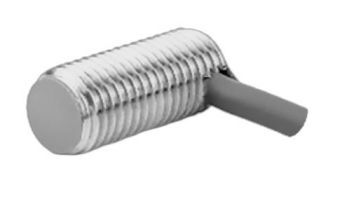

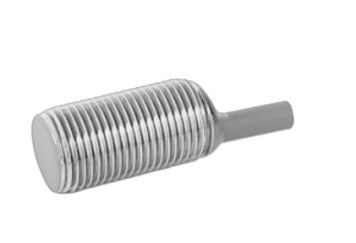

| Appearance |  |
 |
 |
|||
| Size | M8×18mm | M8×18mm | M8×22mm | |||
| Sensing distance | 1mm±10% | 2mm±10% | 1mm±10% | 2mm±10% | 2mm±10% | |
| Installation method | Buried type | Buried type | Non-buried type | |||
| Shell material | Stainless steel | Stainless steel | ||||
| ●With LED | With LED | With LED | ||||
| Sensor surface material | PBT | PBT | ||||
| Operating voltage | 10-30VDC | 10-30VDC | ||||
| Lianbo | <10% | <10% | ||||
| No load current | <10mA | <10mA | ||||
| Maximum load current | <150mA | <150mA | ||||
| Leakage current | <0.01mA | <0.01mA | ||||
| Voltage drop | <1.5V | <1.5V | ||||
| Switching frequency | 2KHz | 1.5KHz | 2KHz | 1.5KHz | 2KHz | |
| Response time | 0.1ms | 0.2ms | 0.1ms | 0.2ms | 0.1ms | |
| Switching hysteresis | <15%(Sr) | |||||
| Repeat accuracy | <5.0%(Sr) | |||||
| Protection level | IP67 | |||||
| Working environment temperature | -25℃~+70℃ | |||||
| Temperature drift | <10%(Sr) | |||||
| Short circuit/overload current protection | YES/200mA | |||||
| Vibration/shock | IEC 60947-5-2, Part7.4.1/Part7.4.2 | |||||
| Connection method | φ3.0mm 2m PVC cable, 3*0.15mm² | |||||
| Model | NPN normally closed | MJ8M-Y1N1-2M | MJ8M-Y2N1-2M | MJ8M-D1N1-2M | MJ8M-D2N1-2M | MJ8C-D2N1-2M |
| NPN normally open | MJ8M-Y1N2-2M | MJ8M-Y2N2-2M | MJ8M-D1N2-2M | MJ8M-D2N2-2M | MJ8C-D2N2-2M | |
| PNP normally closed | MJ8M-Y1P1-2M | MJ8M-Y2P1-2M | MJ8M-D1P1-2M | MJ8M-D2P1-2M | MJ8C-D2P1-2M | |
| PNP normally open | MJ8M-Y1P2-2M | MJ8M-Y2P2-2M | MJ8M-D1P2-2M | MJ8M-D2P2-2M | MJ8C-D2P2-2M | |

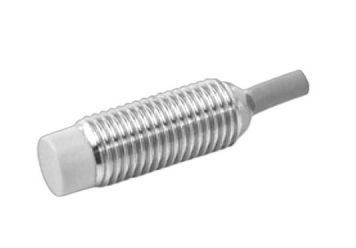

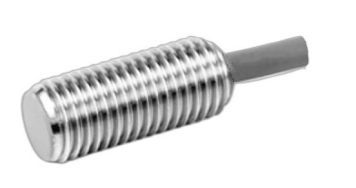

| Appearance |  |
 |
||
| Size | M12×22mm | M12×28mm | ||
| Sensing distance | 2mm±10% | 4mm±10% | 4mm±10% | |
| Installation method | Embedded type | Non-embedded type | ||
| Shell material | Copper nickel plating | |||
| ●With LED | With LED | |||
| Sensor surface material | PBT | |||
| Operating voltage | 10-30VDC | |||
| Lianbo | <10% | |||
| No load current | <10mA | |||
| Maximum load current | <150mA | |||
| Leakage current | <0.01mA | |||
| Voltage drop | <1.5V | |||
| Switching frequency | 2KHz | 1KHz | 2KHz | |
| Response time | 01ms | 0.2ms | 02ms | |
| Switching hysteresis | <15%(Sr) | |||
| Repeat accuracy | <3.0%(Sr) | <5.0%(Sr) | ||
| Protection level | IP67 | |||
| Working environment temperature | -25℃~+70℃ | |||
| Temperature drift | <10%(Sr) | |||
| Short circuit/overload current protection | YES/200mA | |||
| Vibration/shock | IEC 60947-5-2, Part7.4.1/Part7.4.2 | |||
| Connection method | φ4.0mm 2m PVC cable, 3*0.15mm² | |||
| Model | NPN normally closed | MJ12M-D2N1-2M | MJ12M-D4N1-2M | MJ12C-D4N1-2M |
| NPN normally open | MJ12M-D2N2-2M | MJ12M-D4N2-2M | MJ12C-D4N2-2M | |
| PNP normally closed | MJ12M-D2P1-2M | MJ12M-D4P1-2M | MJ12C-D4P1-2M | |
| PNP normally open | MJ12M-D2P2-2M | MJ12M-D4P2-2M | MJ12C-D4P2-2M | |
