Ultra-small Inductive Proximity Sensor
Category:Proximity Sensors
●Stable detection of objects in a small space
●Shielded structure, can be embedded in objects for detection
●Shortened by 1/3 compared to similar standard products
●Shielded structure, can be embedded in objects for detection
●Shortened by 1/3 compared to similar standard products
Keywords: Photoelectric sensor, Linear speed sleeve
Product description
| Appearance |  |
 |
||||
| Size | Ø3×25mm | Ø4×25mm | ||||
| Sensing distance | 0.8mm±10% | 1.0mm±10% | 0.8mm±10% | 1.0mm±10% | 1.2mm±10% | |
| Installation method | Buried type | Embedded | ||||
| Shell material | Stainless steel | Stainless steel | ||||
| ●With LED | With LED | With LED | ||||
| Sensor surface material | Epoxy | PA66 | ||||
| Operating voltage | 10-30VDC | 10-30VDC | ||||
| Continuous wave | <10% | <10% | ||||
| No load current | <10mA | <10mA | ||||
| Maximum load current | <150mA | <150mA | ||||
| Leakage current | <0.01mA | <0.01mA | ||||
| Voltage drop | <1.5V | <1.5V | ||||
| Switching frequency | 1.5KHz | 1KHz | 2KHz | 2KHz | center;">1.5KHz | |
| Response time | 0.1ms | 0.1ms | 0.1ms | 0.1ms | 0.2ms | |
| Switching hysteresis | <15%(Sr) | <15%(Sr) | ||||
| Repeat accuracy | <5.0%(Sr) | <5.0%(Sr) | ||||
| Protection level | IP67 | IP67 | ||||
| Working environment temperature | -25℃~+70℃ | -25℃~+70℃ | ||||
| Temperature drift | <10%(Sr) | <10%(Sr) | ||||
| Short circuit/overload current protection | YES | |||||
| Vibration/Shock | IEC 60947-5-2, Part7.4.1/Part7.4.2 | IEC 60947-5-2, Part7.4.1/Part7.4.2 | ||||
| Connection method | φ2.5mm 2m PVC cable, 3*0.15mm² | φ2.5mm 2m PVC cable, 3*0.15mm² | ||||
| Model | NPN normally closed | MJ03M-E0.8N1-2M | MJ03M-E1N1-2M | MJ04M-E0.8N1-2M | MJ04M-E1N1-2M | MJ04M-E1.2N1-2M |
| NPN normally open | MJ03M-E0.8N2-2M | MJ03M-E1N2-2M | MJ04M-E0.8N2-2M | MJ04M-E1N2-2M | MJ04M-E1.2N2-2M | |
| PNP Normally Closed | MJ03M-E0.8P1-2M | MJ03M-E1P1-2M | MJ04M-E0.8P1-2M | MJ04M-E1P1-2M | MJ04M-E1.2P1-2M | |
| PNP normally open | MJ03M-E0.8P2-2M | MJ03M-E1P2-2M | MJ04M-E0.8P2-2M | MJ04M-E1P2-2M | MJ04M-E1.2P2-2M | |

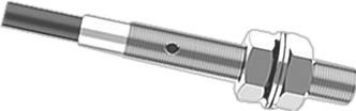

| Appearance |  |
 |
||||
| Size | M4×25mm | M5×25mm | ||||
| Sensing distance | 0.8mm±10% | 1.0mm±10% | 1.0mm±10% | 1.2mm±10% | 1.5mm±10% | |
| Installation method | Buried type | Embedded | ||||
| Shell material | Stainless steel | Stainless steel | ||||
| ●With LED | With LED | With LED | ||||
| Sensor surface material | Epoxy | PA66 | ||||
| Operating voltage | 10-30VDC | 10-30VDC | ||||
| Lianbo | <10% | <10% | ||||
| No load current | <10mA | <10mA | ||||
| Maximum load current | <150mA | <150mA | ||||
| Leakage current | <0.01mA | <0.01mA | ||||
| Voltage drop | <1.5V | <1.5V | ||||
| Switching frequency | 2KHz | 1KHz | 2KHz | 2KHz | 1.5KHz | |
| Response time | 0.1ms | 0.2ms | 0.1ms | 0.1ms | 0.2ms | |
| Switching hysteresis | <15%(Sr) | <15%(Sr) | ||||
| Repeat accuracy | <3.0%(Sr) | <5.0%(Sr) | <3.0%(Sr) | <3.0%(Sr) | <5.0%(Sr) | |
| Protection level | IP67 | IP67 | ||||
| Working environment temperature | -25℃~+70℃ | -25℃~+70℃ | ||||
| Temperature drift | <10%(Sr) | <10%(Sr) | ||||
| Short circuit/overload current protection | YES/200mA | YES/260mA | ||||
| Vibration/Shock | IEC 60947-5-2, Part7.4.1/Part7.4.2 | IEC 60947-5-2, Part7.4.1/Part7.4.2 | ||||
| Connection method | D2.53×0.14 PVC 2M | D2.53×0.14 PVC 2M | ||||
| Model | NPN normally closed | MJ4M-E0.8N1-2M | MJ4M-E1N1-2M | MJ5M-E1N1-2M | MJ5M-E1.2N1-2M | MJ5M-E1.5N1-2M |
| NPN normally open | MJ4M-E0.8N2-2M | MJ4M-E1N2-2M | MJ5M-E1N2-2M | MJ5M-E1.2N2-2M | MJ5M-E1.5N2-2M | |
| PNP normally closed | MJ4M-E0.8P1-2M | MJ4M-E1P1-2M | MJ5M-E1P1-2M | MJ5M-E1.2P1-2M | MJ5M-E1.5P1-2M | |
| PNP normally open | MJ4M-E0.8P2-2M | MJ4M-E1P2-2M | MJ5M-E1P2-2M | MJ5M-E1P2-2M | MJ5M-E1.2P2-2M | |

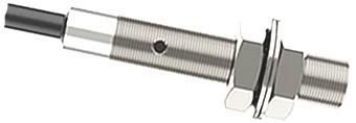

| Appearance |  |
||||
| Size | M6×30mm | ||||
| Sensing distance | 1mm±10% | 1.2mm±10% | 1.5mm±10% | ||
| Installation method | Buried type | ||||
| Shell material | Stainless steel | ||||
| ●With LED | With LED | ||||
| Sensor surface material | PA66 | ||||
| Working voltage | 10-30VDC | ||||
| Continuous wave | <10% | ||||
| No load current | <10mA | ||||
| Maximum load current | <150mA | ||||
| Leakage current | <0.01mA | ||||
| Voltage drop | <1.5V | ||||
| Switching frequency | 2KHz | 2KHz | 1KHz | ||
| Response time | 0.1ms | 0.3ms | |||
| Switch hysteresis | <15%(Sr) | <15%(Sr) | |||
| Repeat accuracy | <3.0%(Sr) | <3.0%(Sr) | <5.0%(Sr) | ||
| Protection level | IP67 | ||||
| Working environment temperature | -25℃~+70℃ | ||||
| Temperature drift | <10%(Sr) | ||||
| Short circuit/overload current protection | YES /180mA | ||||
| Vibration/Shock | IEC 60947-5-2, Part7.4.1/Part7.4.2 | ||||
| Connection method | φ2.5mm 2m PVC cable, 3*0.15mm² | ||||
| Model | NPN normally closed | MJ6M-E1N1-2M | MJ6M-E1.2N1-2M | MJ6M-E1.5N1-2M | |
| NPN normally open | MJ6M-E1N2-2M | MJ6M-E1.2N2-2M | MJ6M-E1.5N2-2M | ||
| PNP normally closed | MJ6M-E1P1-2M | MJ6M-E1.2P1-2M | MJ6M-E1.5P1-2M | ||
| PNP normally open | MJ6M-E1P2-2M | MJ6M-E1.2P2-2M | MJ6M-E1.5P2-2M | ||

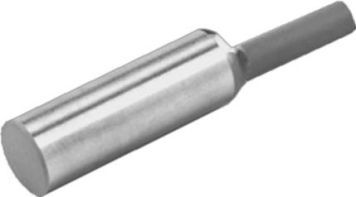

| Appearance |  |
 |
|||
| Size | Ø6.5×18mm | Ø6.5×18mm | |||
| Sensing distance | 1mm±10% | 2mm±10% | 1mm±10% | 2mm±10% | |
| Installation method | Buried type | Buried type | |||
| Shell material | Stainless steel | Stainless steel | |||
| ●With LED | With LED | With LED | |||
| Sensor surface material | PBT | PBT | |||
| Operating voltage | 10-30VDC | 10-30VDC | |||
| Continuous wave | <10% | <10% | |||
| No load current | <10mA | <10mA | |||
| Maximum load current | <150mA | <150mA | |||
| Leakage current | <0.01mA | <0.01mA | |||
| Voltage drop | <1.5v | <1.5v | |||
| Switching frequency | 2KHz | 1KHz | 2KHz | 1KHz | |
| Response time | 0.1ms | 0.1ms | |||
| Switching hysteresis | <15%(Sr) | <15%(Sr) | |||
| Repeat accuracy | <3.0%(Sr) | <3.0%(Sr) | |||
| Protection level | IP67 | IP67 | |||
| Working environment temperature | -25℃~+70℃ | -25℃~+70℃ | |||
| Temperature drift | <10%(Sr) | <10%(Sr) | |||
| Short circuit/overload current protection | YES/180mA | YES/180mA | |||
| Vibration/shock | IEC 60947-5-2, Part7.4.1/Part7.4.2 | IEC 60947-5-2, Part7.4.1/Part7.4.2 | |||
| Connection method | φ3.0mm 2m PVC cable, 3*0.15mm² | φ3.0mm 2m PVC cable, 3*0.15mm² | |||
| Model | NPN normally closed | MJ6.5M-D1N1-2M | MJ6.5M-D2N1-2M | MJ6.5M-Y1N1-2M | MJ6.5M-Y2N1-2M |
| NPN normally open | MJ6.5M-D1N2-2M | MJ6.5M-D2N2-2M | MJ6.5M-Y1N2-2M | MJ6.5M-Y2N2-2M | |
| PNP normally closed | MJ6.5M-D1P1-2M | MJ6.5M-D2P1-2M | MJ6.5M-Y1P1-2M | MJ6.5M-Y2P1-2M | |
| PNP normally open | MJ6.5M-D1P2-2M | MJ6.5M-D2P2-2M | MJ6.5M-Y1P2-2M | MJ6.5M-Y2P2-2M | |
