High Temperature Resistant Inductive Proximity Sensor
Category:Proximity Sensors
●The diameters are M12/M18/M30
●The maximum temperature can reach 150℃
●IP67 protection level
●The maximum temperature can reach 150℃
●IP67 protection level
Keywords: Photoelectric sensor, Linear speed sleeve
Product description

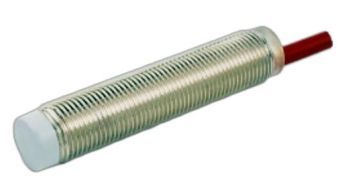

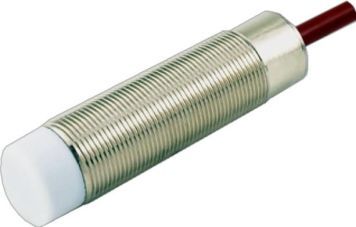

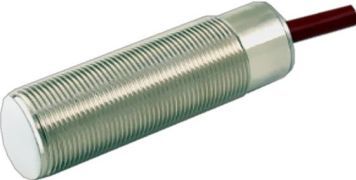

| Appearance |  |
 |
 |
|
| Size | M12×50mm | M12×60mm | M18×58mm | |
| Sensing distance | 2mm±10% | 4mm±10% | 5mm±10% | |
| Set distance | 0-1.6mm | 0-3.2mm | 0-4.0mm | |
| Installation method | Buried type< /td> | Non-embedded | Embedded | |
| Shell material | Copper Nickel Plated | |||
| Switching Frequency | 1KHz | 500Hz | 500Hz | |
| ●With LED | -- | |||
| Sensing surface material | PTFE | |||
| Operating voltage | 10-30VDC | |||
| Continuous wave | <10% | |||
| No load current | <10mA | |||
| Maximum load current | <150mA | |||
| Leakage current | <0.01mA | |||
| Voltage drop | <1.5V | |||
| Response time | 0.2ms | |||
| Switching hysteresis | <15%(Sr) | |||
| Repeat accuracy | <5.0%(Sr) | |||
| Protection level | IP67 | |||
| Working environment temperature | 0℃~+150℃ | |||
| Temperature drift | <10%(Sr ) | |||
| Short circuit/overload current protection | YES | |||
| EMC | RFI>3V/M/EFT>1KV /ESD>4KV(contact) | |||
| Vibration/Shock | IEC 60947-5-2, Part7.4.1/IEC 60947-5-2, Part7. 4.2 | |||
| Connection method | φ4.0mm 2m silicone cable, 3*0.15mm² | φ5.0mm 2m silicone cable | ||
| Model | NPN normally closed | MJ12M-H2N1 -2M | MJ12C-H4N1-2M | MJ18M-H5N1-2M |
| NPN normally open | MJ12M-H2N2-2M | MJ12C-H4N2-2M< /td> | MJ18M-H5N2-2M | |
| PNP normally closed | MJ12M-H2P1-2M | MJ12C-H4P1 -2M | MJ18M-H5P1-2M | |
| PNP normally open | MJ12M-H2P2-2M | MJ12C-H4P2-2M | MJ18M-H5P2-2M | |

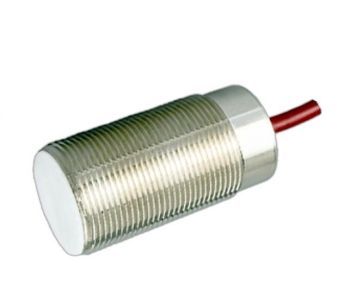

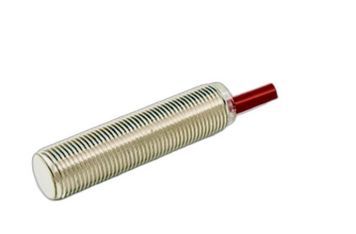

| Appearance |  |
 |
 |
|
| Size | M18×68mm | M30×58mm | M30×70mm | |
| Sensing distance | 8mm±10% | 10mm ±10% | 15mm±12% | |
| Set distance | 0-6.4mm | 0-8.0mm | 0-12mm | |
| Installation method | Non-embedded | Embedded | Non-embedded | |
| Shell material | Copper nickel plated | |||
| Switching frequency | 400Hz | 300Hz | 200Hz | |
| ●With LED | -- | |||
| Sensing surface material | PTFE | |||
| Operating voltage | 10-30VDC | |||
| Continuous | <10% | |||
| No load current | <10mA | |||
| Maximum load current | <150mA | |||
| Leakage current | <0.01mA | |||
| Voltage drop | <1.5V | |||
| Response time | 0.2 ms | |||
| Switching hysteresis | <15%(Sr) | |||
| Repeat accuracy | <5.0%(Sr) | |||
| Protection level | IP67 | |||
| Working environment temperature | 0℃~+150℃ | |||
| Temperature drift | <10%(Sr ) | |||
| Short circuit/overload current protection | YES | |||
| EMC | RFI>3V/M/EFT>1KV /ESD>4KV(contact) | |||
| Vibration/Shock | IEC 60947-5-2, Part7.4.1/IEC 60947-5-2, Part7. 4.2 | |||
| Connection method | φ5.0mm 2m silicone cable, 3*0.33mm² | |||
| Model | NPN normally closed | MJ18C-H8N1-2M | MJ30M-H10N1-2M | MJ30C-H15N1-2M |
| NPN normally open | MJ18C-H8N2-2M | MJ30M-H10N2-2M | MJ30C-H15N2-2M | |
| PNP normally closed | MJ18C-H8P1-2M | MJ30M-H10P1-2M | MJ30C-H15P1-2M | |
| PNP normally open | MJ18C-H8P2-2M | MJ30M-H10P2-2M | MJ30C-H15P2-2M | |
