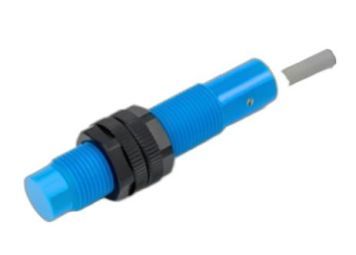

Cylindrical Capacitive Proximity Sensor
Category:Proximity Sensors
●Metal/plastic shell material optional
●Detection of different materials such as metal, plastic, liquid level, etc.
●Suitable for various occasions, high quality, easy to operate
●Detection of different materials such as metal, plastic, liquid level, etc.
●Suitable for various occasions, high quality, easy to operate
Keywords: Photoelectric sensor, Linear speed sleeve
Product description

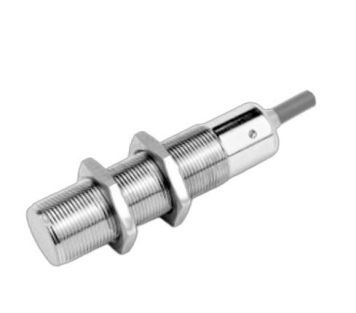

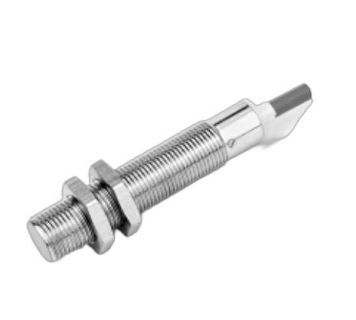

| Appearance |  |
 |
 |
|
| Size | M12×60mm | M12×65mm | M18×70mm | |
| Sensing distance | 1 - 2mm(adjustable) | 1 - 4mm(adjustable) | 2 - 5mm(adjustable) | |
| 1 - 3mm (adjustable) | 1 - 6mm (adjustable) | 2 - 8mm (adjustable) | ||
| Installation method | Embedded | Non-embedded | Embedded | |
| Shell material | Copper nickel-plated | |||
| Switching frequency | 50Hz | |||
| ●With LED | Yellow LED | |||
| Sensing surface material | PBT | |||
| Operating voltage | 10-30VDC | |||
| Continuous wave | <10% | |||
| No load current | <10mA | |||
| Maximum load current | <150mA | |||
| Leakage current | <0.01mA | |||
| Voltage drop | <1.5V | |||
| Response time | 1.5ms | |||
| Switching hysteresis | <15%(Sr) | |||
| Repeat accuracy | <5.0%(Sr) | |||
| Protection level | IP66 | |||
| Working environment temperature | -25℃~+70℃ | |||
| Temperature drift | <20%(Sr) | |||
| Short circuit/overload current protection | YES/240mA | |||
| EMC | RFI>3V/M /EFT>1KV /ESD>4KV(contact) | |||
| Vibration/Shock | IEC 60947-5-2, Part7.4.1/IEC 60947-5-2, Part7.4.2 | |||
| Connection method | φ4.0mm 2m PVC cable, 3*0.15mm² | φ5.0mm 2m PVC cable | ||
| Model | NPN normally closed | MJ12M-J2N1-2MR | MJ12C-J4N1-2MR | MJ18M-J5N1-2MR |
| MJ12M-J3N1-2MR | MJ12C-J6N1-2MR | MJ18M-J8N1-2MR | ||
| NPN normally open | MJ12M-J2N2-2MR | MJ12C-J4N2-2MR | MJ18M-J5N2-2MR | |
| MJ12M-J3N2-2MR | MJ12C-J6N2-2MR | MJ18M-J8N2-2MR | ||
| PNP normally closed | MJ12M-J2P1-2MR | MJ12C-J4P1-2MR | MJ18M-J5P1- 2MR | |
| MJ12M-J3P1-2MR | MJ12C-J6P1-2MR | MJ18M-J8P1-2MR | ||
| PNP normally open | MJ12M-J2P2-2MR | MJ12C-J4P2-2MR | MJ18M-J5P2-2MR | |
| MJ12M-J3P2-2MR | MJ12C-J6P2-2MR | MJ18M-J 8P2-2MR | ||

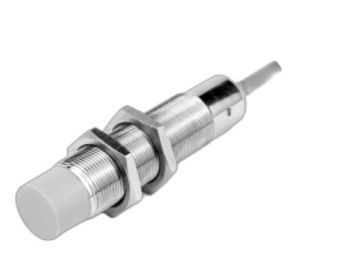

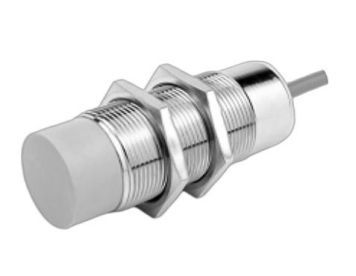

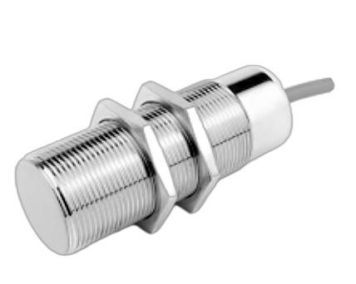

| Appearance |  |
 |
 |
|
| Size | M18×82mm | M30×81mm | M30×81mm | |
| Sensing distance | 2 - 8mm (adjustable) | 2 - 10mm (adjustable) | 2 - 15mm (adjustable ) | |
| 2 - 15mm (adjustable) | 2-20mm±10% | 2 - 30mm (adjustable) | ||
| Installation method | Non-embedded | Embedded | Non-embedded | |
| Shell material | Copper nickel-plated | |||
| Switching frequency | 50Hz | |||
| ●With LED | Yellow LED | |||
| Sensing surface material | PBT | |||
| Operating voltage | 10-30VDC | |||
| Continuous wave | <10% | |||
| No load current | <10mA | |||
| Maximum load current | <150mA | |||
| Leakage current | <0.01mA | |||
| Voltage drop | <1.5V | |||
| Response time | 1.5ms | |||
| Switching hysteresis | <15%(Sr) | |||
| Repeat accuracy | <5.0%(Sr) | |||
| Protection level | IP66 | |||
| Working environment temperature | -25℃~+70℃ | |||
| Temperature drift | <20%( Sr) | |||
| Short circuit/overload current protection | YES/240mA | |||
| EMC | RFI>3V/M/EFT>1KV/ESD>4KV(contact) | |||
| Vibration/Shock | IEC 60947-5-2, Part7. 4.1/IEC 60947-5-2, Part7.4.2 | |||
| Connection method | φ5.0mm 2m PVC Cable, 3*0.33mm2/4*0.33mm² | |||
| Model | NPN normally closed | MJ18C-J8N1-2MR | MJ30M-J10N1-2MR | MJ30C-J15N1-2MR |
| MJ18C-J15N1-2MR | MJ30M-J20N1- 2MR | MJ30C-J30N1-2MR | ||
| NPN normally open | MJ18C-J8N2-2MR | MJ30M-J10N2-2MR | MJ30C-J15N2-2MR | |
| MJ18C-J15N2-2MR | MJ30M-J20N2-2MR | MJ30C-J30N2-2MR | ||
| PNP normally closed | MJ18C-J8P1-2MR | MJ30M-J10P1-2MR | MJ30C-J15P1-2MR | |
| MJ18C-J15P1-2MR | MJ30M-J20P1-2MR | MJ30C-J30P1-2MR | ||
| PNP normally open | MJ18C-J8P2-2MR | MJ30M-J10P2-2MR | MJ30C-J15P2-2MR | |
| MJ18C-J15P2-2MR | MJ30M-J20P2-2MR | MJ30C-J30P2-2MR | ||

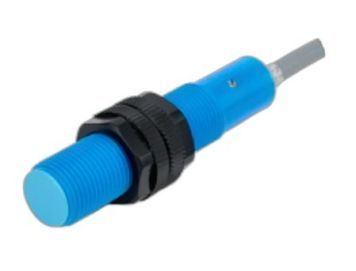

| Appearance |  |
 |
 |
|
| Size | M12×58mm | M12×63mm | M18×75mm | |
| Sensing distance | 1-3mm±10%(adjustable) | 1-6mm±10%(adjustable) | 1-8mm±10%(adjustable) | |
| Installation method | Embedded | Non-embedded | Embedded | |
| Case material | ABS | |||
| Switching frequency | 50Hz | |||
| ●With LED | With LED | |||
| Sensing surface material | PBT | |||
| Operating voltage | 10-30VDC | |||
| Continuous wave | <10% | |||
| No load current | <10mA | |||
| Maximum load current | <150mA | |||
| Leakage current | <0.01mA | |||
| Voltage drop | <1.5V | |||
| Response time | 1.5ms | |||
| Switching hysteresis | <15%(Sr) | |||
| Repeat accuracy | <5.0%(Sr) | |||
| Protection level | IP66 | |||
| Working environment temperature | -25℃~+70℃ | |||
| Temperature drift | <10%(Sr) | |||
| Short circuit/overload current protection | YES/180mA | |||
| EMC | RFI>3V/M /EFT>1KV /ESD>4KV(contact) | |||
| Vibration/shock | IEC 60947-5-2,Part7.4.1/IEC 60947-5-2,Part7.4.2 | |||
| Connection method | D43×0.15 PVC 2M | D53×0.34 /4×0.34 PVC 2M | ||
| Model | NPN normally closed | MJ12M-S3N1-2MR | MJ12C-S6N1-2MR | MJ18M-S8N1-2MR |
| NPN normally open | MJ12M-S3N2-2MR | MJ12C-S6N2-2MR | MJ18M-S8N2-2MR | |
| PNP normally closed | MJ12M-S3P1-2MR | MJ12C-S6P1-2MR | MJ18M-S8P1-2MR | |
| PNP Normally Open | MJ12M-S3P2-2MR | MJ12C-S6P2-2MR | MJ18M-S8P2-2MR | |

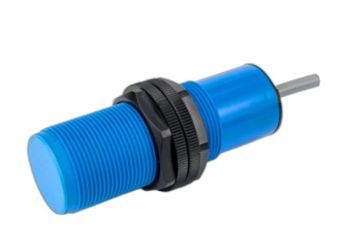

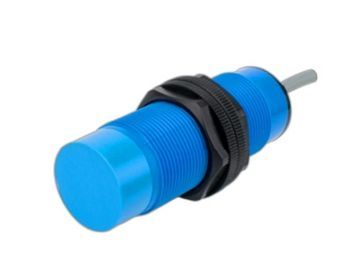

| Appearance |  |
 |
 |
|
| Size | M18×75mm | M30×87mm | M30×87mm | |
| Sensing distance | 1-15mm±10%(adjustable) | 1-20mm±10%(adjustable) | 1-30mm±10%(adjustable) | |
| Installation method | Non-embedded | Embedded | Non-embedded | |
| Shell material | ABS | |||
| Switching frequency | 50Hz | |||
| ●With LED | With LED | |||
| Sensing surface material | PBT | |||
| Operating voltage | 10-30VDC | |||
| Continuous wave | <10% | |||
| No load current | <10mA | |||
| Maximum load current | <150mA | |||
| Leakage current | <0.01mA | |||
| Voltage drop | <1.5V | |||
| Response time | 1.5ms | |||
| Switching hysteresis | <15%(Sr) | |||
| Repeat accuracy | <5.0%(Sr) | |||
| Protection level | IP66 | |||
| Working environment temperature | -25℃~+70℃ | |||
| Temperature drift | <10%(Sr) | |||
| Short circuit/overload current protection | YES /180mA | |||
| EMC | RFI>3V/M /EFT>1KV /ESD>4KV(contact) | |||
| Vibration/shock | IEC 60947-5-2, Part7.4.1/IEC 60947-5-2, Part7.4.2 | |||
| Connection method | D53×0.34/4×0.34 PVC 2M | |||
| Model | NPN normally closed | MJ18C-S15N1-2MR | MJ30M-S20N1-2MR | MJ30C-S30N1-2MR |
| NPN normally open | MJ18C-S15N2-2MR | MJ30M-S20N2-2MR | MJ30C-S30N2-2MR | |
| PNP normally closed | MJ18C-S15P1-2MR | MJ30M-S20P1- 2MR | MJ30C-S30P1-2MR | |
| PNP Normally Open | MJ18C-S15P2-2MR | MJ30M-S20P2-2MR | MJ30C-S30P2-2MR | |
