Flat/Cylindrical Capacitive Proximity Sensors
Category:Proximity Sensors
●Can sense non-metallic objects, adjustable sensitivity
●Can detect liquid errors and determine position
●Non-contact position detection, high reliability
●Can detect liquid errors and determine position
●Non-contact position detection, high reliability
Keywords: Photoelectric sensor, Linear speed sleeve
Product description

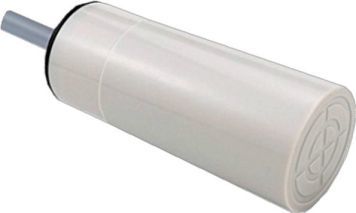

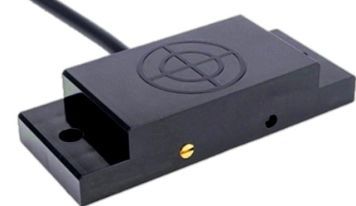

| Appearance |  |
 |
|
| Dimensions | 50×20*10mm | φ34*82mm | |
| Installation method | Non-embedded | Buried type | |
| Sensing distance | 1-10mm (adjustable) | 2-25mm (adjustable) | |
| Standard test object | 30*30*1mm(Fe) | 75*75*1mm(Fe) | |
| Sensing surface material | PBT | ABS | |
| Switching frequency | 50Hz | ||
| Response time | <1.5ms | ||
| Shell material | Plastic | ||
| ●With LED | Yellow LED indicator | ||
| Operating voltage | 10-30VDC | ||
| Continuous wave | <10% | ||
| No load Current | <10mA | ||
| Maximum load current | <150mA | ||
| Leakage current | <0.01mA | ||
| Voltage drop | <1.5V | ||
| Switching hysteresis | <15%(Sr) | ||
| Repeat accuracy | <5.0%(Sr) | ||
| Protection level | IP66 | ||
| Working environment temperature | -25℃~+70℃ | ||
| Temperature drift | <10%(Sr) | ||
| Short circuit/overload current protection | YES | ||
| EMC | RFI>3V/M /EFT>1KV /ESD>4KV(contact) | ||
| Vibration/Shock | IEC 60947-5-2, Part7.4.1/IEC 60947-5-2, Part7.4.2 | ||
| Connection method | φ3.0mm 2m PVC cable, 3*0.15mm² | φ5.0mm 2m_PVC cable 3*0.33mm² | |
| Weight | About 49.3g | About 158.3g | |
| Model | NPN normally closed | MJQ20-S10N1-2MR | MJ34M-S25N1- 2MR |
| NPN normally open | MJQ20-S10N2-2MR | MJ34M-S25N2-2MR | |
| PNP normally closed | MJQ20-S10P1-2MR | MJ34M-S25P1-2MR | |
| PNP normally open | MJQ20-S10P2-2MR | MJ34M-S25P2-2MR | |
